Stainless steel three-way diverter valve for pneumatic conveying of powder or particles

Name: Stainless steel threeway diverter valve for pneumatic conveying of powder or particles
Brand: TECLION
Price: 1 USD

Stainless steel three-way diverter valve for pneumatic conveying of powder or particles Manufactures

Brand Name : TECLION

Model Number : DK80

Certification : CE

Place of Origin : China

MOQ : 1 set

Price : Chat Now

Payment Terms : T/T

Supply Ability : one set per ten working days

Delivery Time : 10 working days

Packaging Details : Non fumigation wooden box

Material : 316SS

Size : DN80

Type : Plug

Driving form : Pneumatic

Usage : Conveying powder or granular

Angel : 45 degree

Flange Type : RF

Flange standard : ASME 150LBS

Contact Now

Stainless steel three-way diverter valve for pneumatic conveying of powder or particles

Product Description:

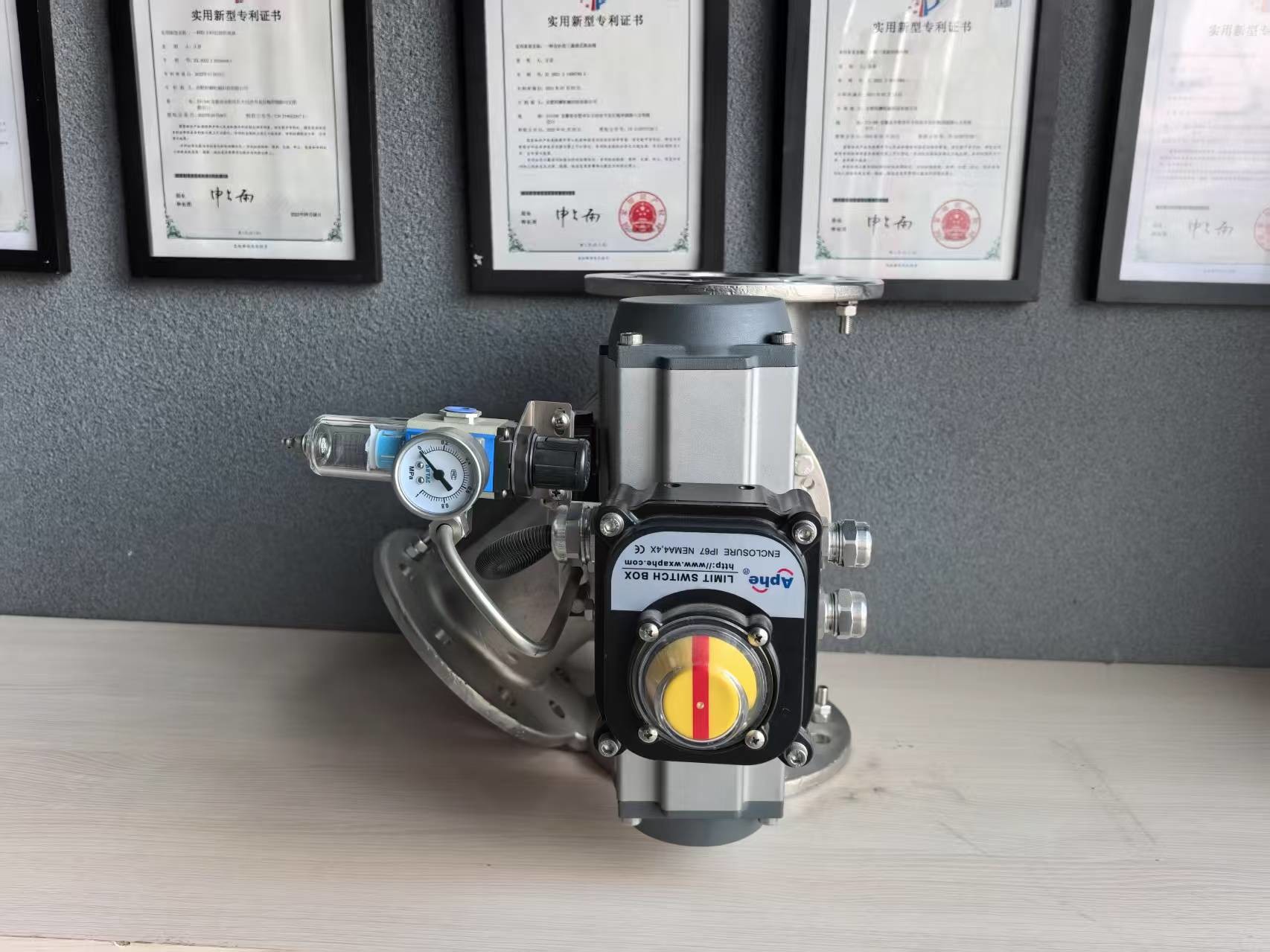

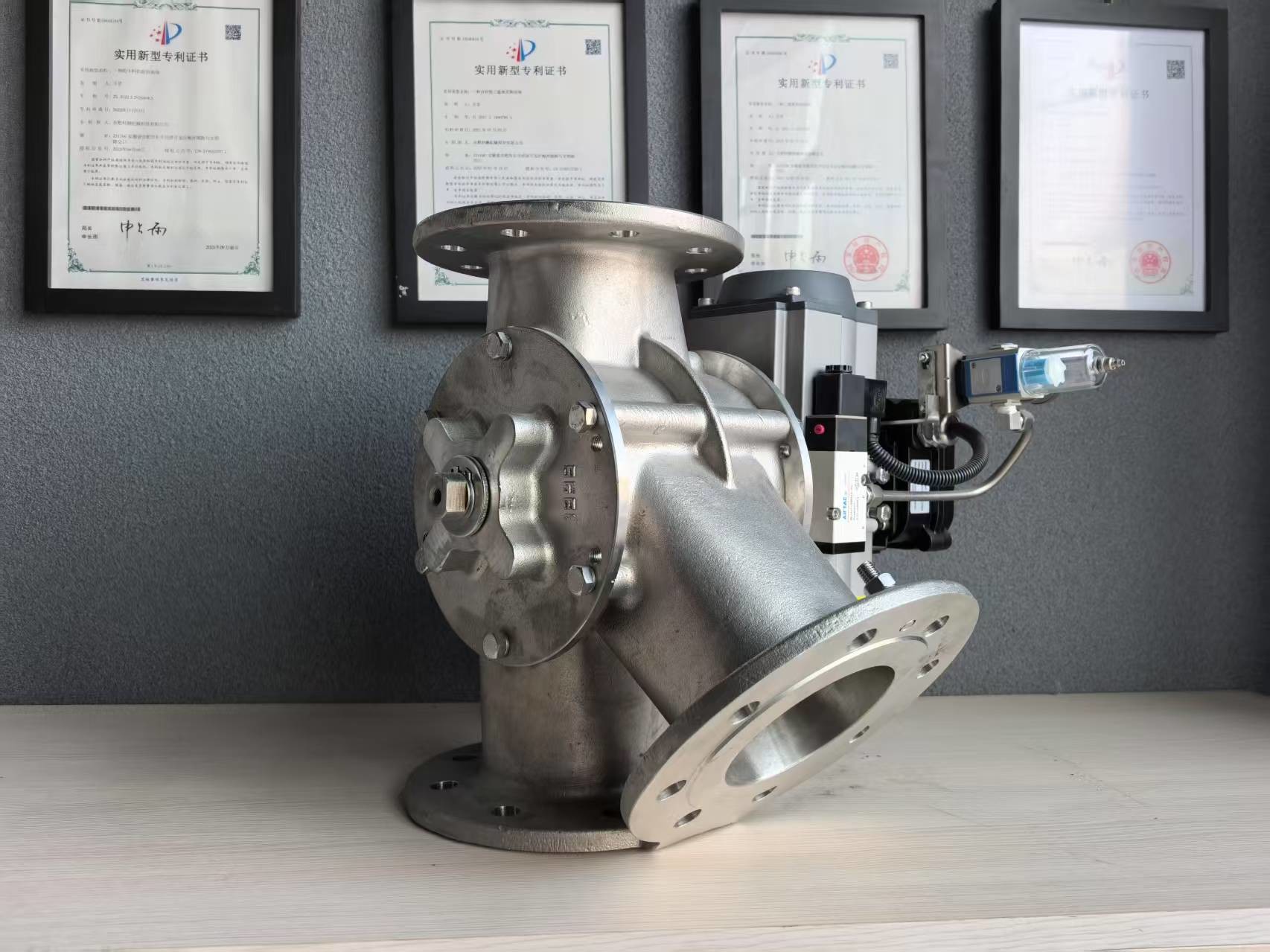

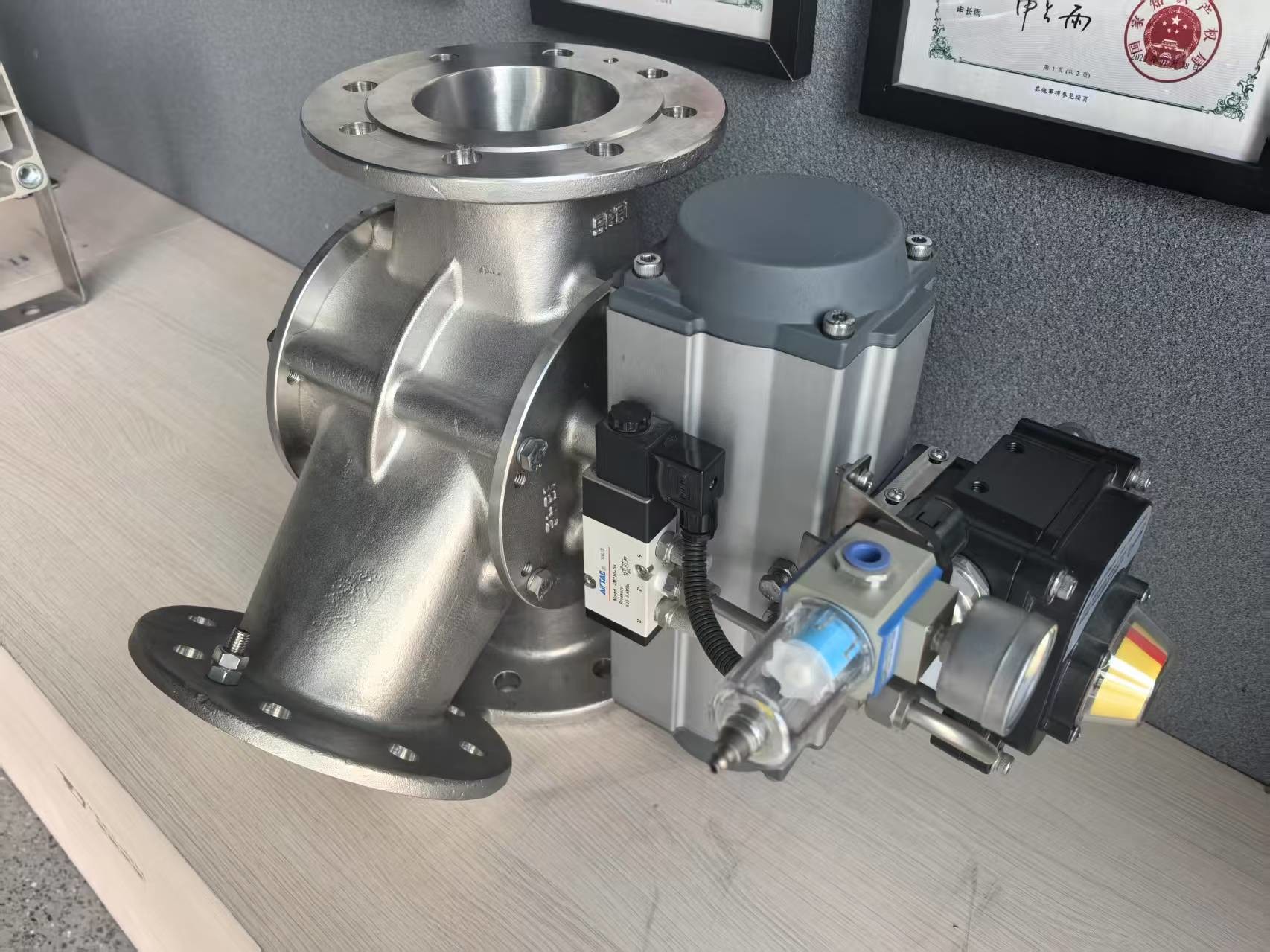

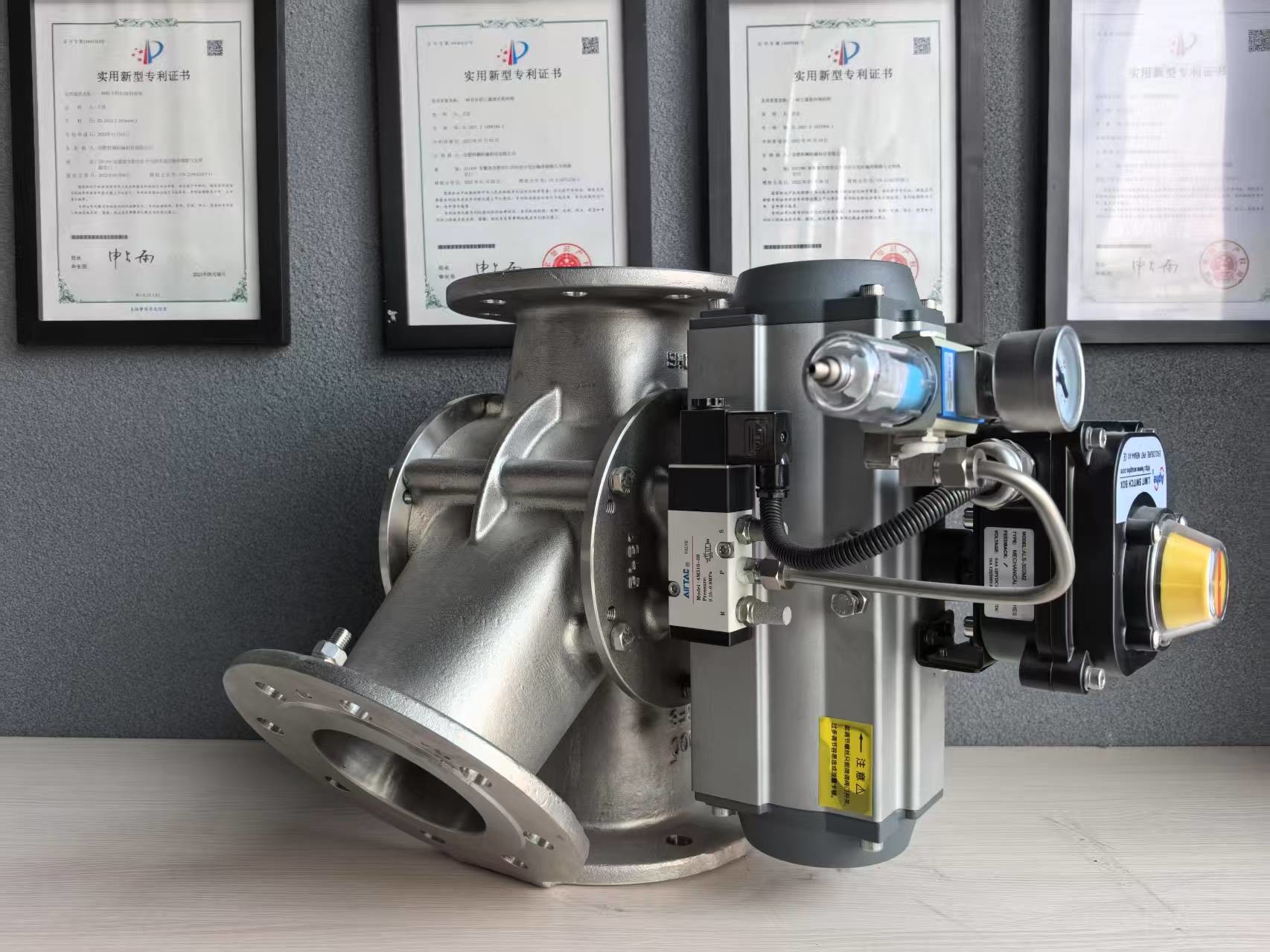

The picture shows a three-way diverter valve, also known as a plunger type diverter valve. The diameter is DN80 and the material is 316 stainless steel. It is commonly used in pneumatic conveying pipelines for powder and granular materials, and is used as a valve to switch the flow direction of materials. This plunger type diverter valve is suitable for conveying conditions with a pressure exceeding 1.5 bags and is often used near the top of the silo. The angle between the directional valve channels is 45 degrees. Equipped with electrical components such as cylinders, solenoid valves, filter regulators, junction boxes, proximity switches, etc., brands can be selected according to customer requirements. If the customer uses it under low-temperature conditions, low-temperature resistant electrical components can also be selected for the customer. After tens of thousands of directional action tests, the sealing performance is still good and reliable.

Stainless steel three-way diverter valve for pneumatic conveying of powder or particles

Stainless steel three-way diverter valve for pneumatic conveying of powder or particles Images
