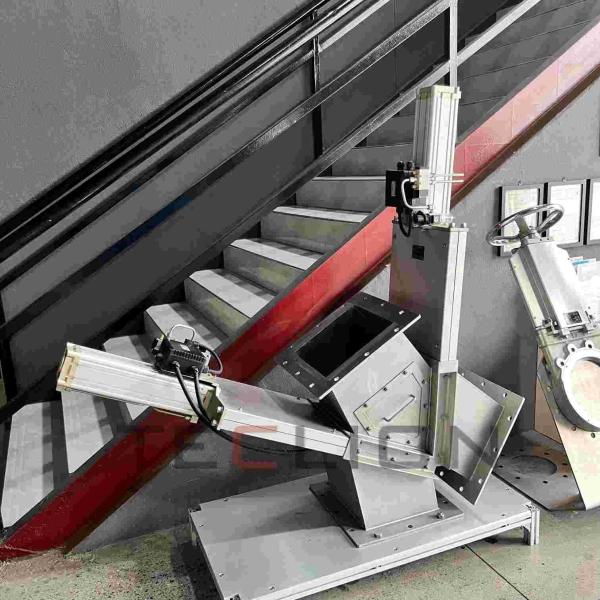

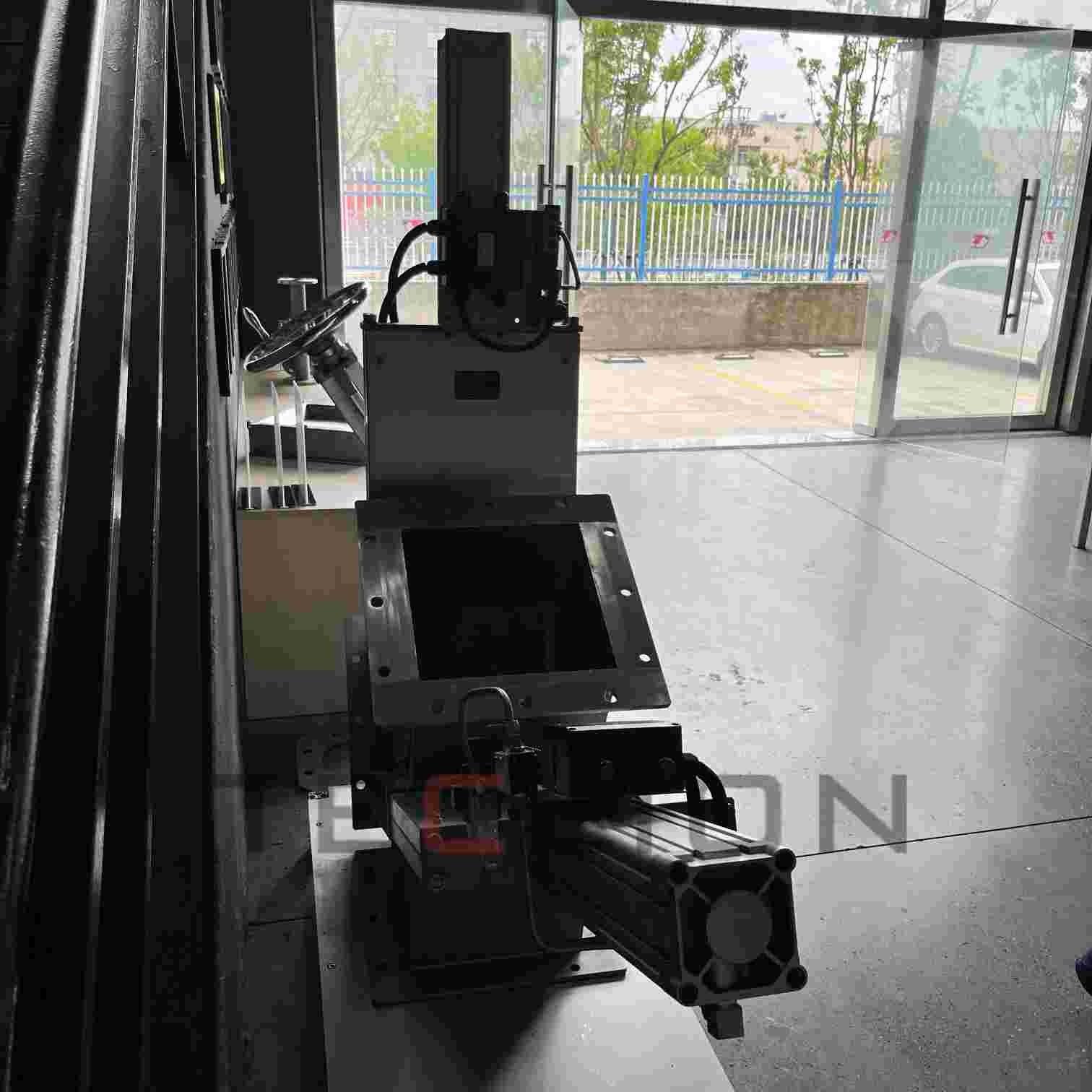

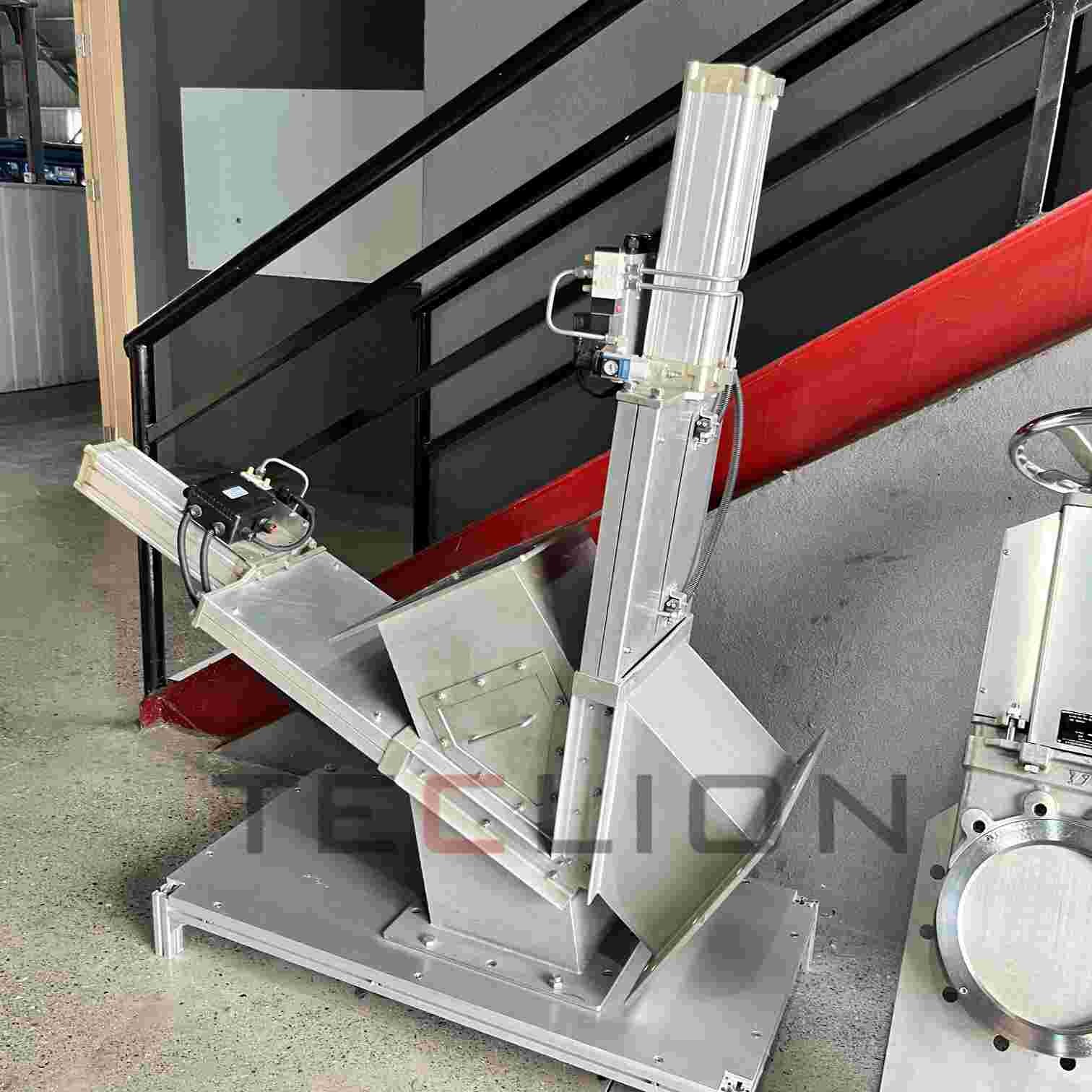

Stainless Steel Double Blade Diverter Valve for Material Conveying
Product Description:
Double knife directional valve is a specialized equipment used in solid material conveying systems, mainly suitable for conveying materials such as powder, granular materials, powder particle mixtures, and sheet materials. It is mainly used for gravity unloading and reversing of materials in vertical pipelines, with a completely sealed structure, suitable for outdoor environments.
The product features of the double knife valve include simple and reliable structure, high strength and resistance to deformation, and beautiful appearance; The conveying channel is smooth and polished, ensuring smooth material flow and preventing blockages; Equipped with a special sealing structure, it has good sealing performance; Polishing accuracy can meet the requirements of food grade and pharmaceutical grade.
Product Features:
1) Gravity unloading and reversing
2) Polishing accuracy can reach food grade
3) Simple and reliable structure, high strength and not easily deformed
4) Smooth and smooth conveying channel
5) Design without blind spots
6) Optional formula sealing strip
Product Parameters:
| No | Item | Note |
| 1 | Valve type | discharge valve |
| 2 | Size | DN100-DN500 |
| 3 | Work condition | |
| 4 | Temperature usage ℃ | -20+120℃ |
| 5 | Material | stainless steel |
| 6 | maintenance | Available online |
| 7 | Configuration | Two discharge ports |
| 8 | working | Can switch between carrying materials |
